PASC-12X7- 12" x 7'-0" Stock Cage

12" x 7'-0" Stock Rebar Cage (PASC-12X7)

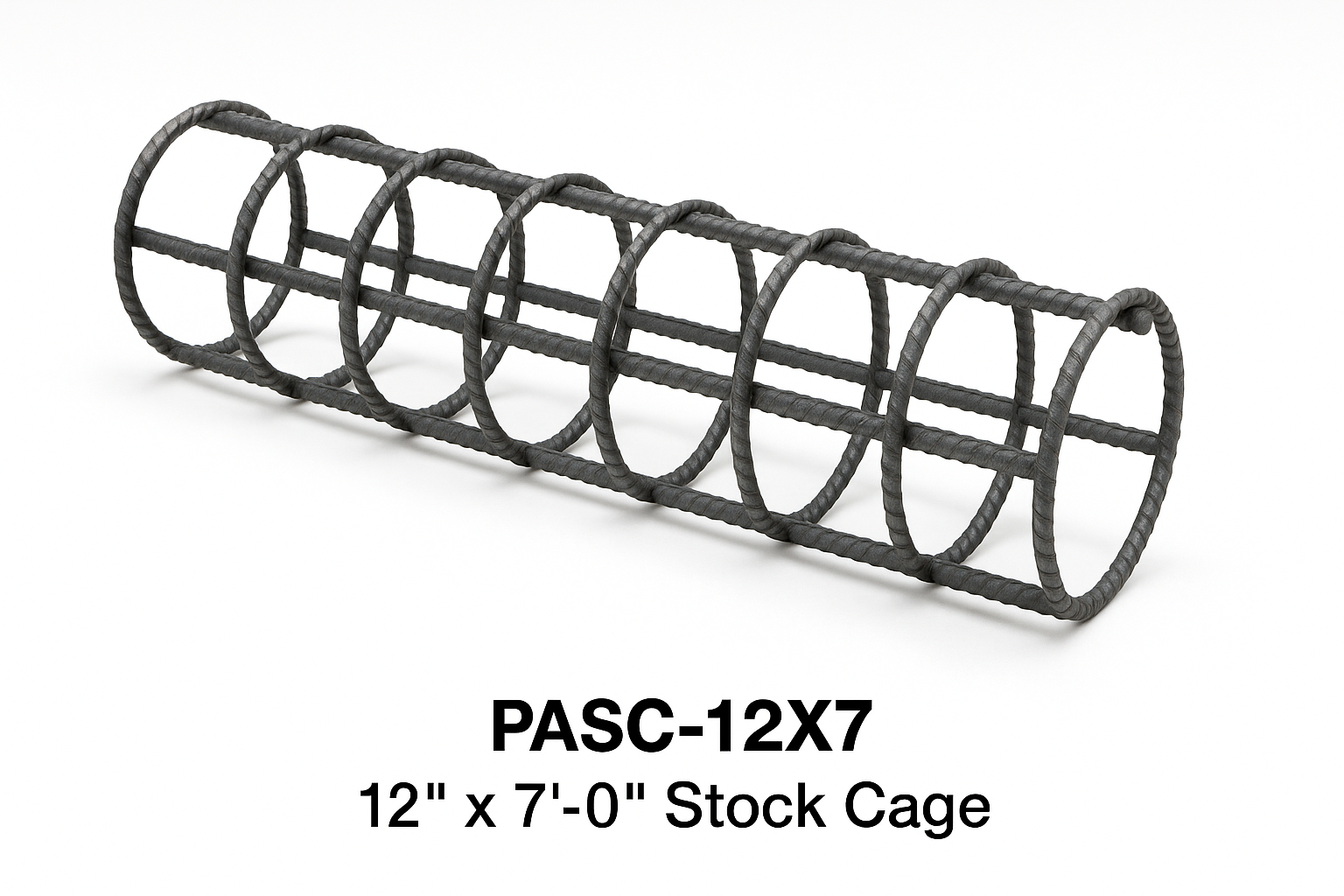

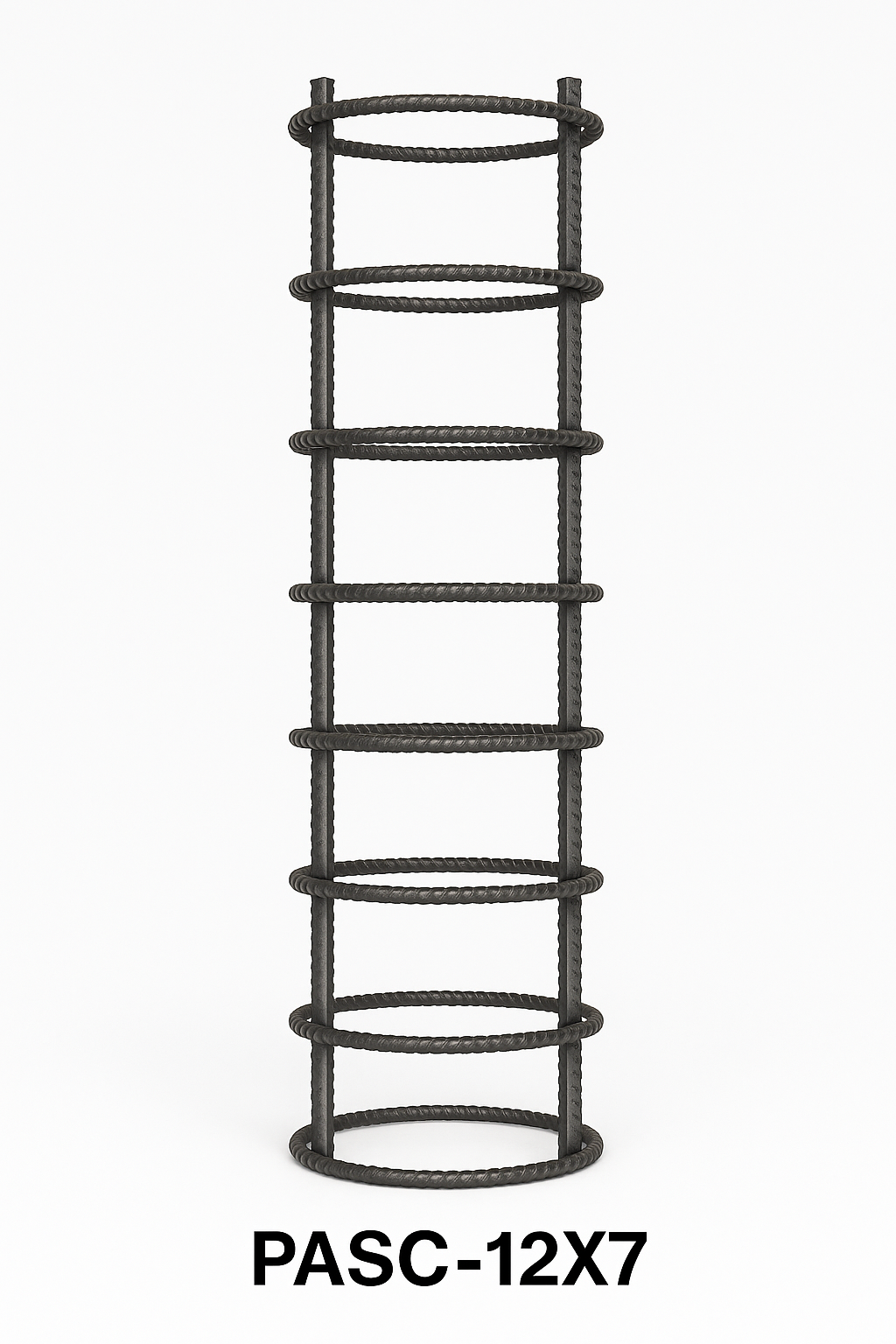

The PASC-12X7 is a high-quality 12" diameter pre-tied rebar cage designed for short foundation elements such as drilled shafts, columns, piers, and caissons where moderate embed lengths or shallow depths are required. Built for efficiency and reliability, this cage arrives jobsite-ready to save valuable time in the field.

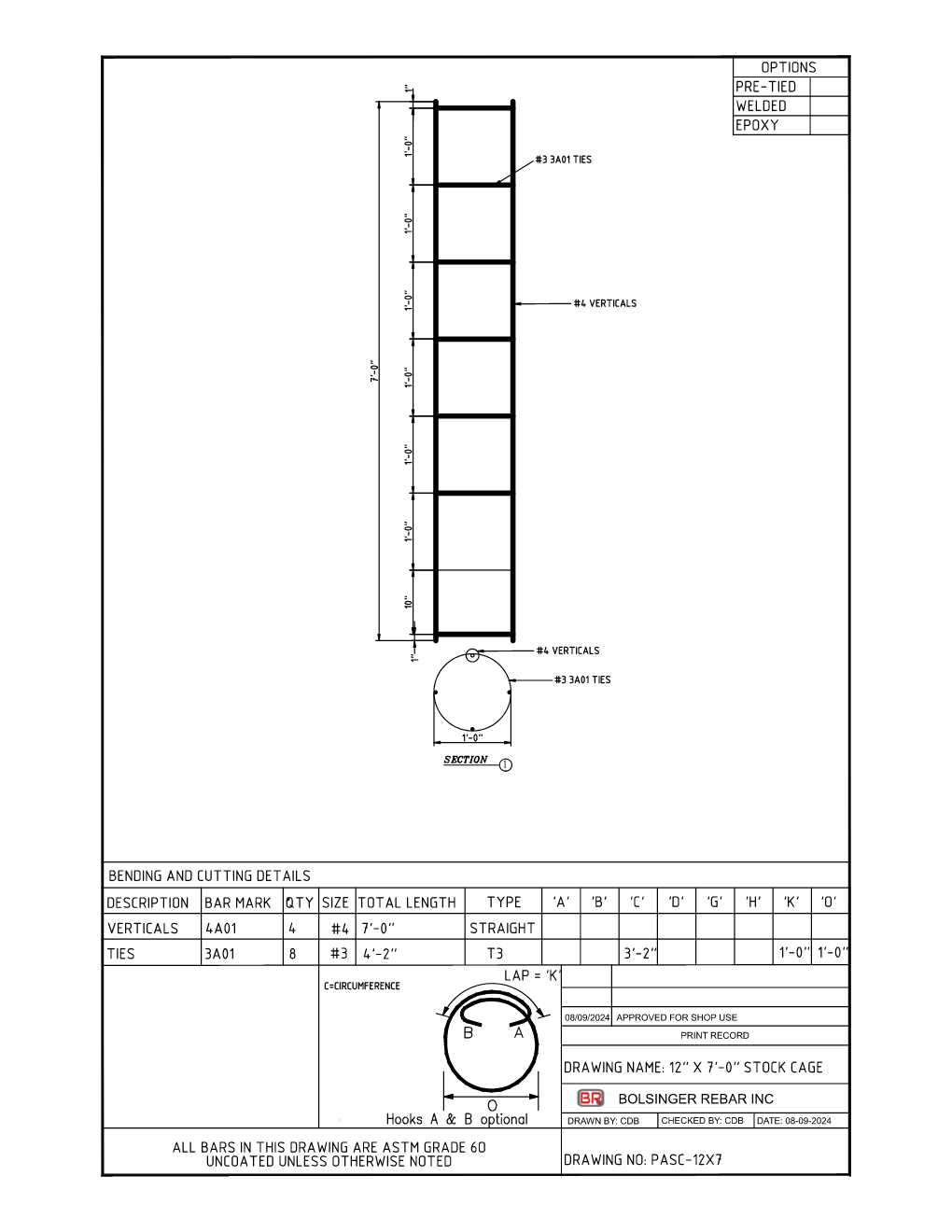

This cage includes 4 vertical #4 bars spaced evenly around the 12" diameter and held in place by 8 ties of #3 bar spaced at 12 inches on center. The 7-foot length is ideal for light to mid-duty structural reinforcement needs requiring additional embedment or extended cage reach.

Product Specifications:

• SKU: PASC-12X7
• Cage Diameter: 12 inches
• Cage Length: 7'-0"
• Vertical Bars: 4 total – #4 rebar
• Ties: 8 total – #3 rebar
• Tie Spacing: 12 inches on center
• Assembly: Available tied or welded
• Coating Options: Plain (uncoated) or epoxy-coated

Why Choose This Cage:

• Ideal for short-depth reinforcement applications
• Fully fabricated for fast, labor-saving installation
• Consistent tie spacing ensures structural integrity
• Options for corrosion resistance and structural rigidity
• Manufactured in-house with quality control at every step

Need a different length or reinforcement layout? Contact us to request a custom cage configuration.
