18” Rebar Pier Cage – 8 ft

18” Rebar Pier Cage – 8 ft

The PASC-18X8 is a high-quality 18” diameter rebar pier cage designed for foundation elements such as drilled shafts, caissons, piers, columns, and sonotube applications requiring larger diameter reinforcement. This pre-assembled cage arrives jobsite-ready to reduce labor time and ensure consistent, reliable structural performance.

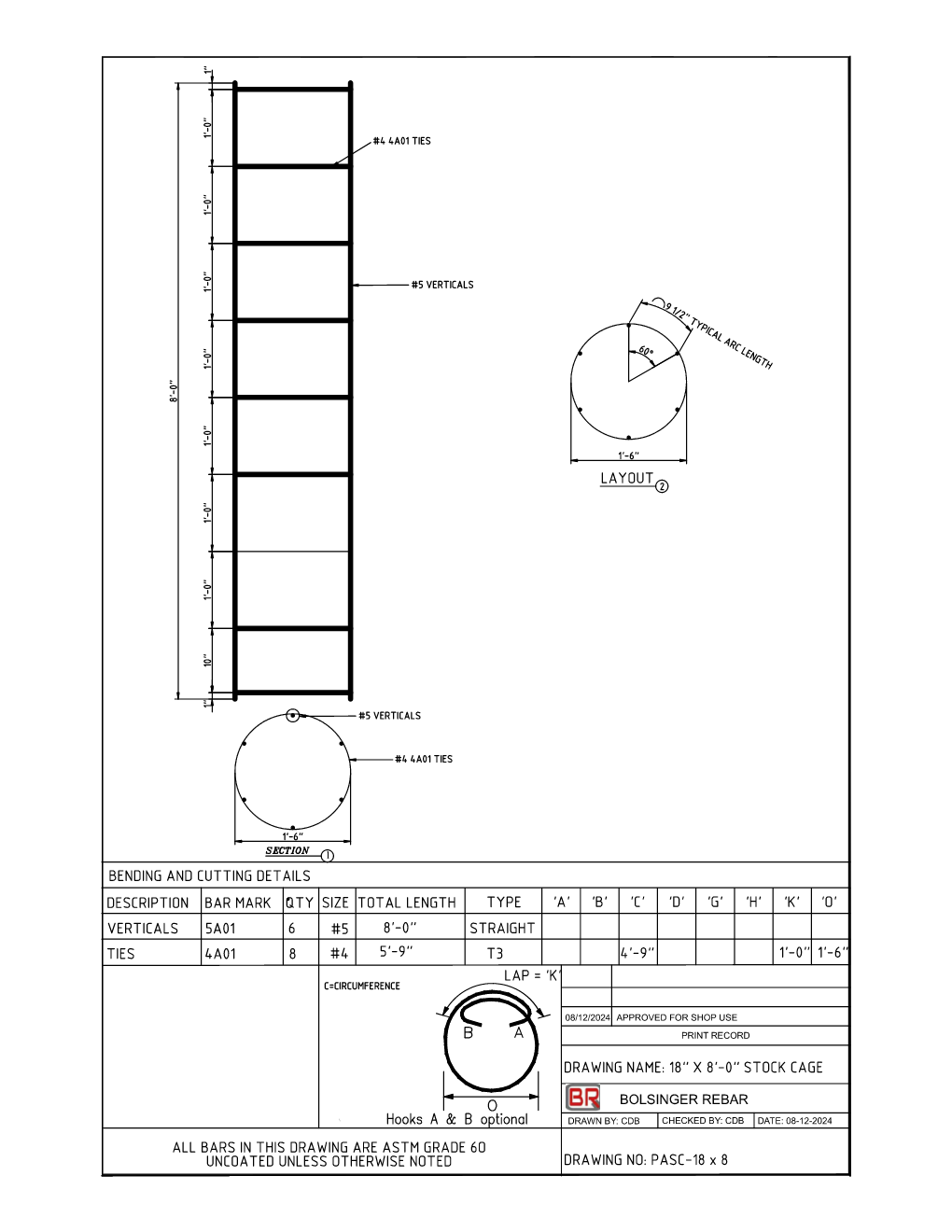

This cage features six (6) #5 vertical bars evenly spaced around an 18” diameter, secured by nine (9) #4 ties spaced at 12 inches on center. The 8 ft height provides extended embedment and maximum structural stability, making it ideal for deeper applications requiring increased strength and load capacity.

Available Configurations

• Pre-Tied – Standard option, ready to install
• Welded – Increased rigidity and consistent spacing
• Epoxy-Coated – Corrosion-resistant for exposed or DOT applications

Product Specifications

• SKU: PASC-18X8
• Diameter: 18 inches
• Height: 8 ft
• Vertical Bars: 6 – #5 rebar
• Ties: 9 – #4 rebar
• Tie Spacing: 12 inches on center
• Material: ASTM A615 Grade 60 Rebar

Why Choose This Cage

• Ideal for larger-diameter moderate to deep foundation applications
• Saves time with pre-assembled, jobsite-ready delivery
• Ensures consistent spacing and structural reliability
• Heavier bar sizes provide increased strength and durability
• Multiple configuration options to fit project requirements
• Manufactured in-house with quality control at every step

Looking for a Lower-Cost Option?

Pier Packs offer a more economical alternative for customers willing to assemble cages on-site. They include pre-cut components for the same size cage but require field assembly.

• Lower upfront cost
• More labor required on-site
• Ideal for budget-sensitive projects

👉 Compare with Pier Packs for this size

Need a different size or reinforcement layout? Contact us to request a custom cage configuration.
