48” Rebar Pier Cage – 8 ft

48” Rebar Pier Cage – 8 ft

The PASC-48X8 is a high-quality 48” diameter rebar pier cage designed for foundation elements such as drilled shafts, caissons, piers, columns, and sonotube applications requiring large-diameter, heavy-duty reinforcement. This pre-assembled cage arrives jobsite-ready to reduce labor time and ensure consistent, reliable structural performance.

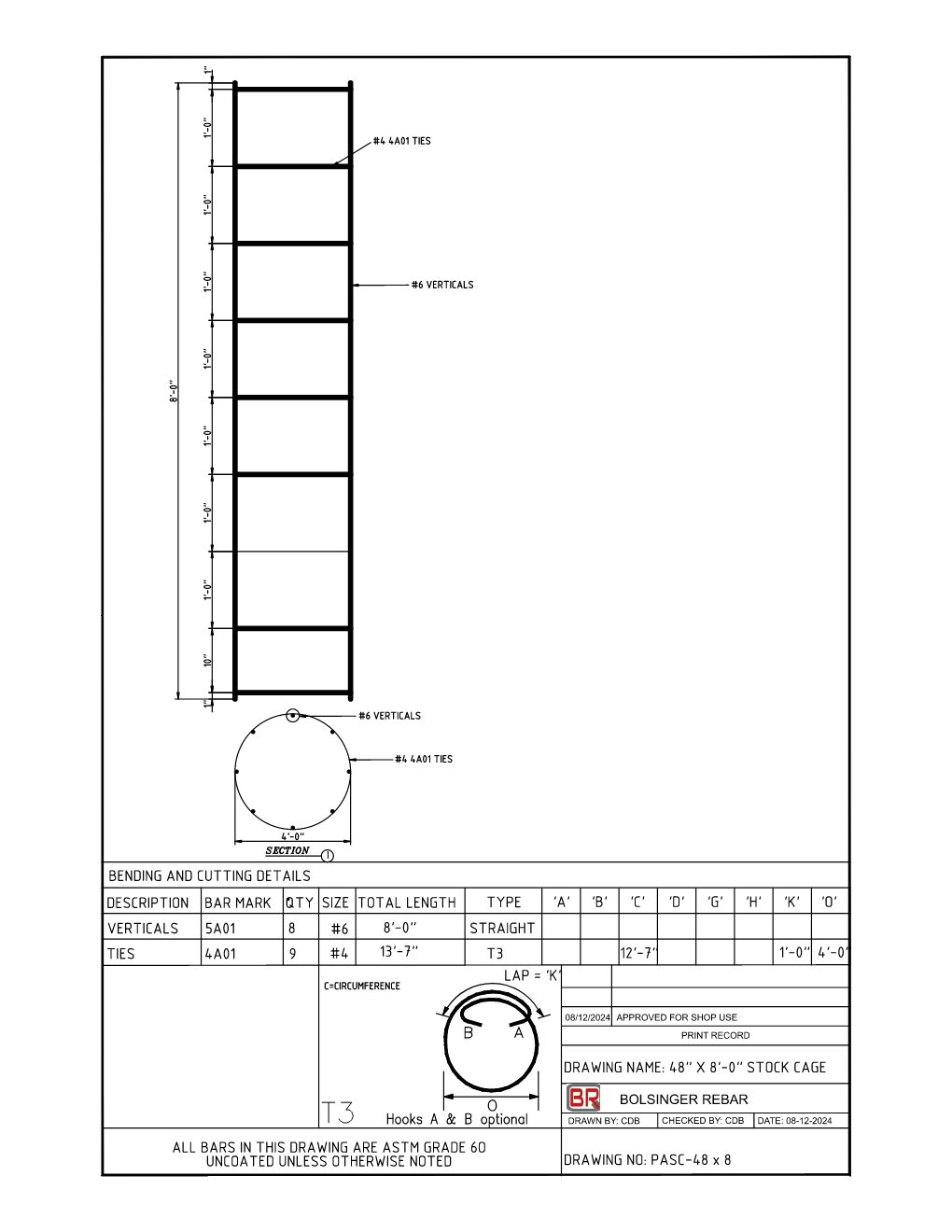

This cage features eight (8) #6 vertical bars evenly spaced around a 48” diameter, secured by nine (9) #4 ties spaced at 12 inches on center. The 8 ft height provides maximum embedment and structural capacity, making it ideal for mid- to heavy-duty applications requiring deeper reinforcement and increased load performance.

Available Configurations

• Pre-Tied – Standard option, ready to install
• Welded – Increased rigidity and consistent spacing
• Epoxy-Coated – Corrosion-resistant for exposed or DOT applications

Product Specifications

• SKU: PASC-48X8
• Diameter: 48 inches
• Height: 8 ft
• Vertical Bars: 8 – #6 rebar
• Ties: 9 – #4 rebar
• Tie Spacing: 12 inches on center
• Material: ASTM A615 Grade 60 Rebar

Why Choose This Cage

• Ideal for large-diameter and heavy-duty foundation applications
• Saves time with pre-assembled, jobsite-ready delivery
• Ensures consistent spacing and structural reliability
• Larger bar sizes provide increased strength and load capacity
• Multiple configuration options to fit project requirements
• Manufactured in-house with quality control at every step

Looking for a Lower-Cost Option?

Pier Packs offer a more economical alternative for customers willing to assemble cages on-site. They include pre-cut components for the same size cage but require field assembly.

• Lower upfront cost
• More labor required on-site
• Ideal for budget-sensitive projects

👉 Compare with Pier Packs for this size

Need a different size or reinforcement layout? Contact us to request a custom cage configuration.
